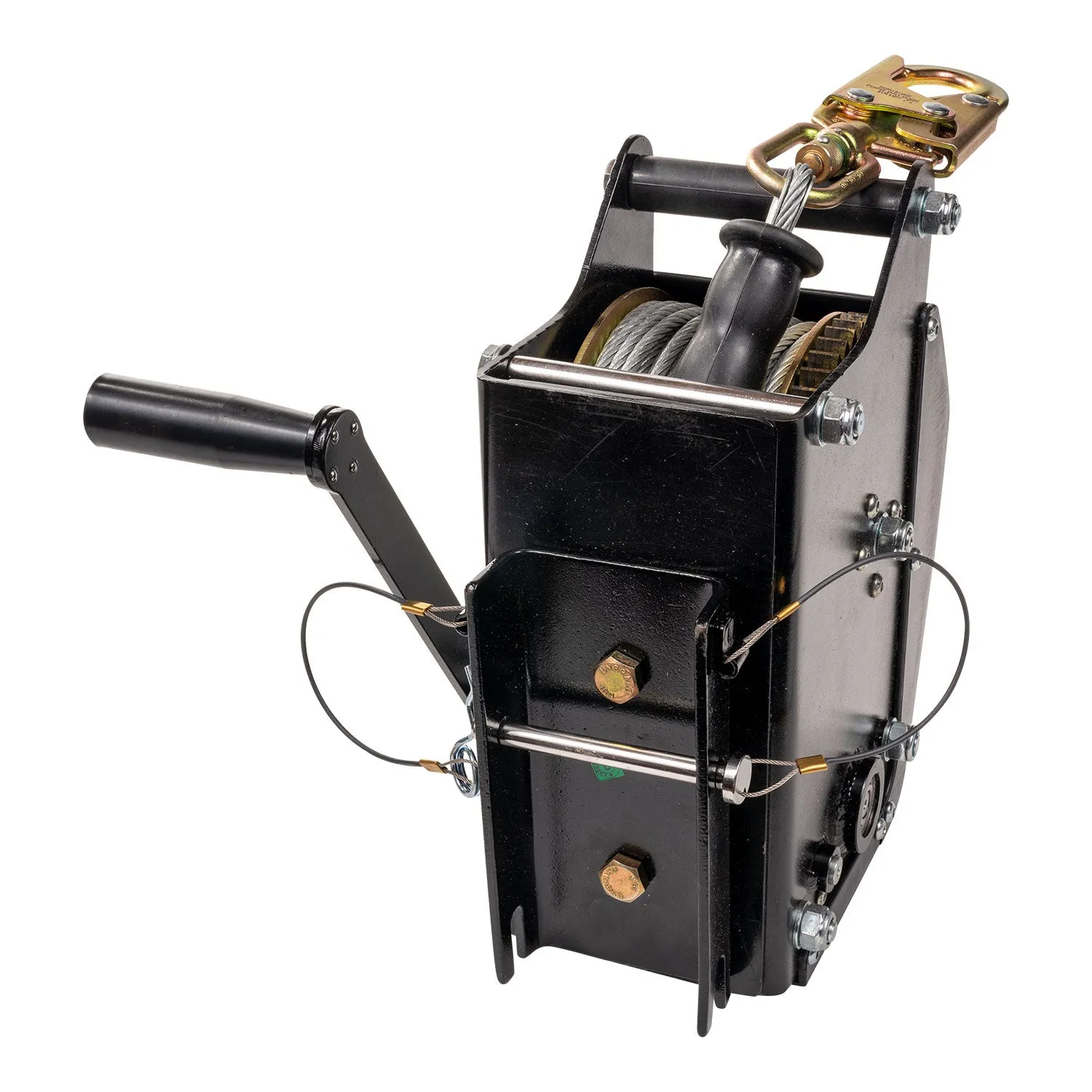

KStrong® 100 ft. Galvanized Wire Cable Personnel / Material Rated Bi-directional Winch with Brake Feature and Mounting Bracket for Confined Spaces (ANSI)
Product Code: UFT531130
The KStrong® 100 ft. Galvanized Wire Cable Personnel/Material Rated Bi-Directional Winch is designed for confined spaces, providing reliable lifting and lowering of personnel and materials. It features an independent reel mode for quick and easy installation and comes equipped with a secondary brake mechanism to reduce dynamic load impact to less than 1800 lbs. in the event of a fall. The winch is compatible with KStrong® Megapod tripods and includes a swivel steel snap hook for secure connections. The handle rotating mechanism ensures smooth operation for both lifting and lowering tasks.
Feature | Specification |
|---|---|
| Design | Material or man lifting rescue winch; Independent reel mode for quick installation; Secondary brake mechanism reducing dynamic load impact to less than 1800 lbs.; Preinstalled attachment point for universal mounting brackets on KStrong® Megapod |
| Wire Cable | Galvanized steel wire rope Ø8/32” (6.35 mm), 100 ft. (3048 cm) length |
| Connector | Swivel Steel Snap Hook (PN 144 as per ANSI Z359.12-2009 gate strength 3600 lbs. (1633 kg)) |
| Handle Mechanism | Rotating mechanism for lifting or lowering |
| Body Material | Galvanized steel |
| Body Finish | ED Coated (Black) |
| Rated Load Capacity | 310 lbs. (140 kg) |
| Weight | 43.69 lbs. ± 0.02 lbs. (19817 gm ± 10 gm) |
| Relevant Standards | Meets or Exceeds ANSI Z359.4-2013 |
