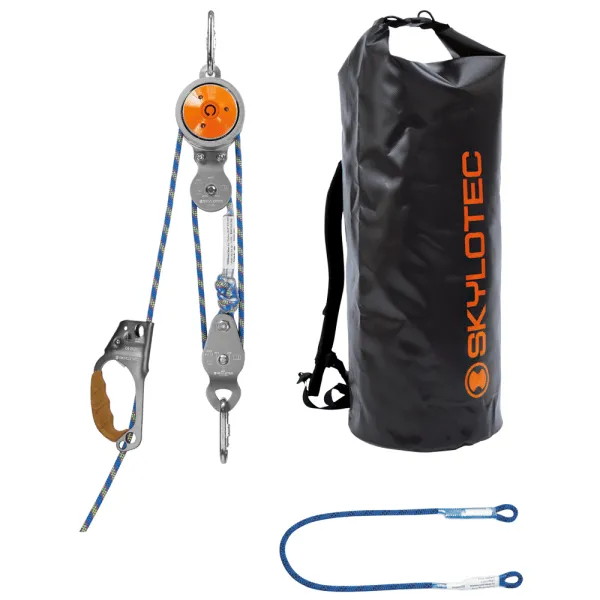

The 3:1 set comes complete with:

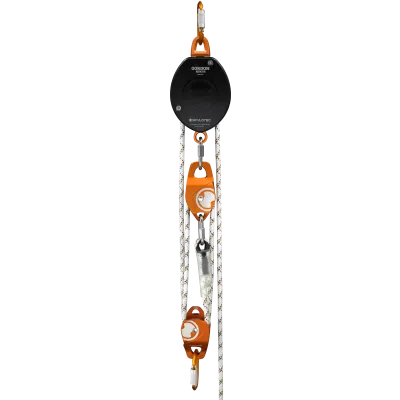

- Gordon pulley 3:1
- This set includes the GORDON RESCUE fall arrester device and the corresponding hardware.
- 45m of SUPER STATIC 10.5 static rope (item no. L-0741)
- DryBag Eco

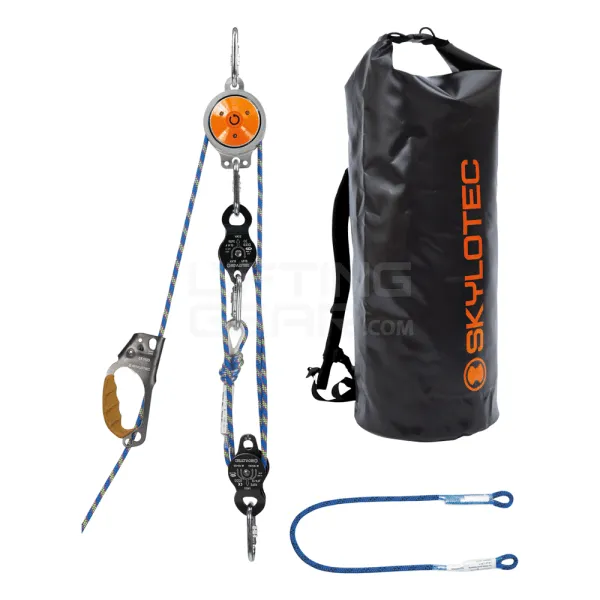

The 5:1 set comes complete with:
- Gordon pulley 5:1
- This set includes the GORDON RESCUE fall arrester device and the corresponding hardware.
- 75m of SUPER STATIC 10.5 static rope (item no. L-0741)
- DryBag Eco
All GORDON PULLEY SYSTEMS can be loaded with up to 260 kg. Only if the basic unit is used as a fall arrest device according to EN 360, the indication of 140 kg on the unit is considered as maximum user weight.
The required length can be calculated from the maximum lifting height multiplied by the required ratio (3 in this case). With this pulley system, for example, a lifting height of 10 metres will require a 30 metre long rope.
