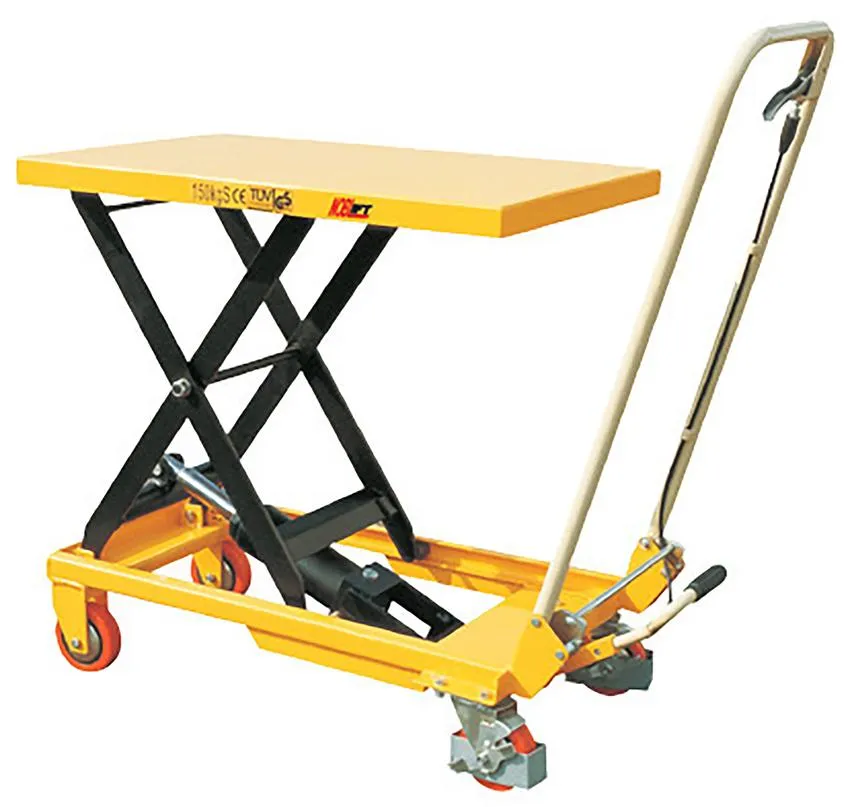

Manual Single Scissor Table Lifter 150Kg

Description:-

Hydraulic foot pump easily lifts and positions loads to reduce the risk of injury associated with lifting, reaching and bending.The table is elevated by a pump action foot pedal and smoothly lowered by a hand operated release trigger.

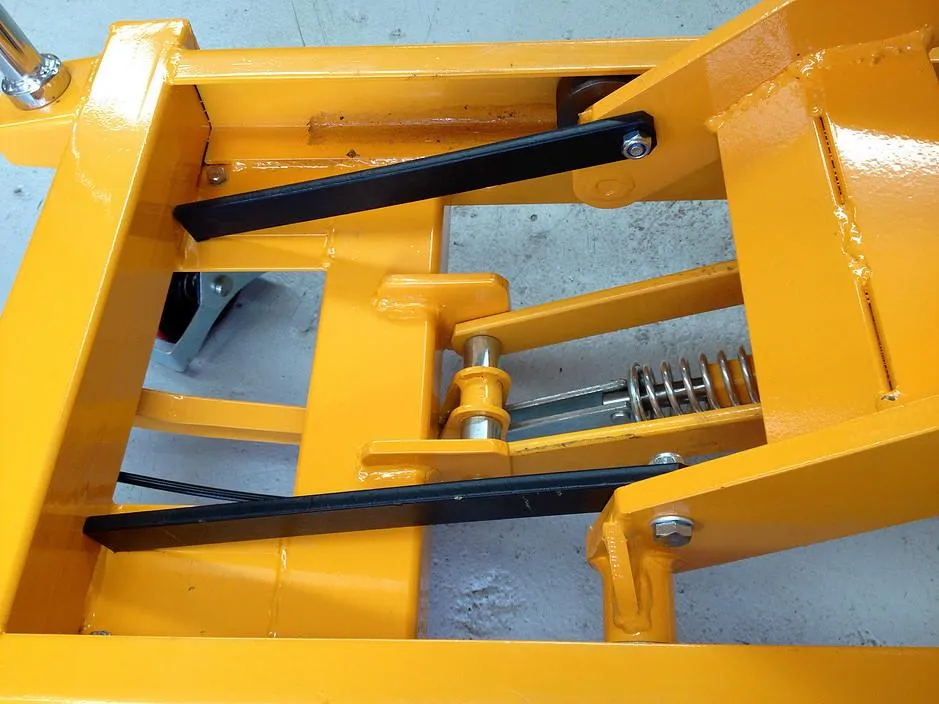

Scissor lift table features safety restraint bars that lock the table in the raised position.

Features:-

• Single scissor and foldable handle for easy storage.
• This manual table scissor lifter is easy to lift by the foot pedal.

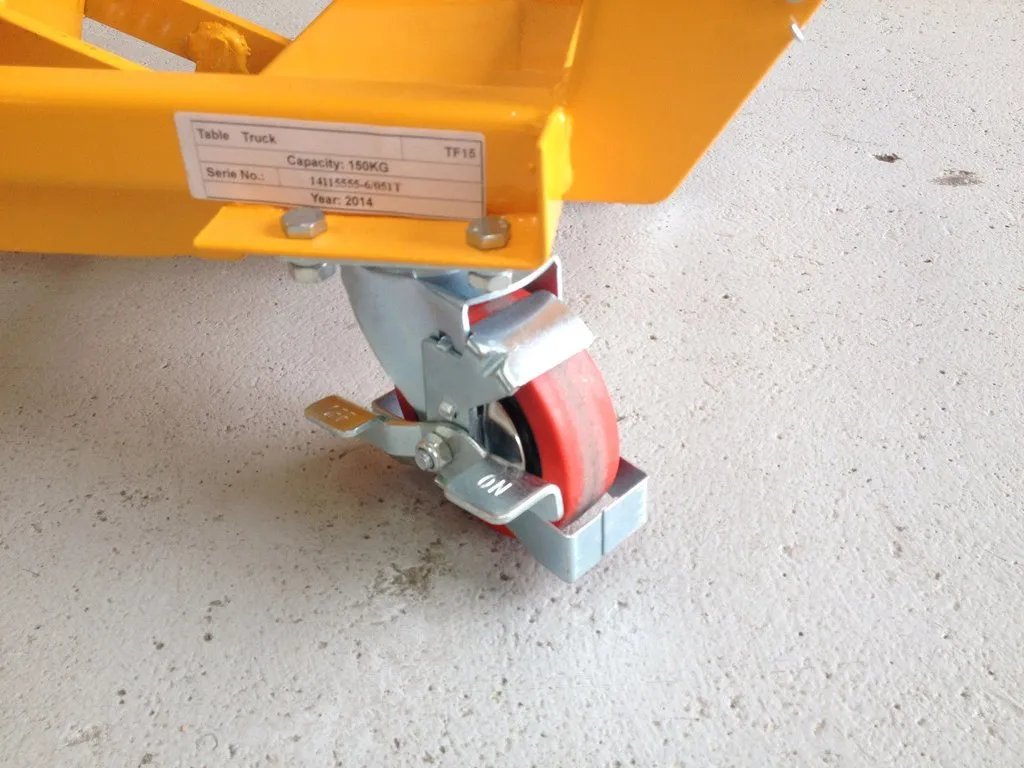

• Brakes on back swivel wheels.
• Foot pedal to lift up, easy operation.
• Load capacity 150kg.
• Foldable handle can be option
• Hand tips/press button to lower down the table

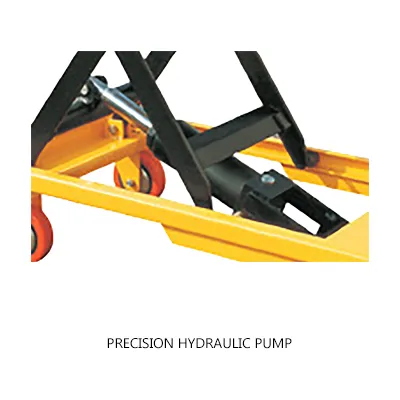

• Casting over-loading pump
• Oil-leaking proof design

Data Sheet:-

Capacity: 150kg

Min-max table height: 220 – 750mm

Table dimensions: 700 x 450 x 36mm

Wheel diameter: 100 x 25mm

Handle height from ground: 950mm

N.W: 49kg

Warranty: 1Year

For more parameter details, please Click upon [Download pdf]
